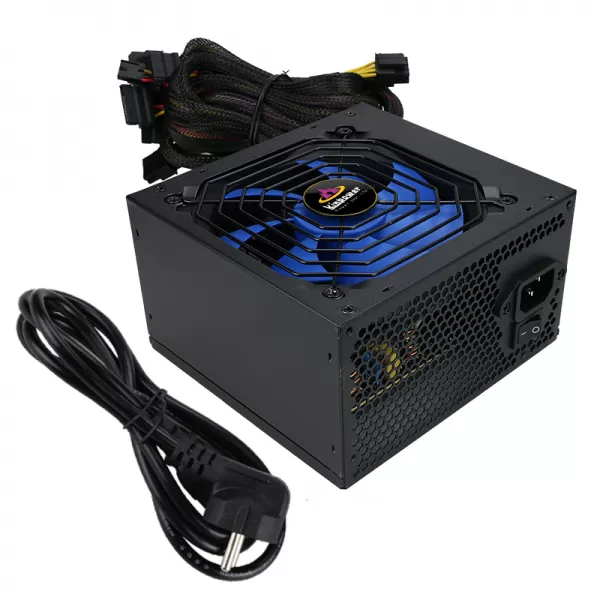

80 Plus Bronze Power Supply
KP-013
80Plus Bronze Certification
350W-850W Available
140×150×85mm Dimensions
Semi/Non Modular
PCIE 8pin and PCIE 6pin Connectors Support
120mm Thermal Temperature Control Fan
Specifications
| 80 Plus | Bronze |
| Cybenectics Efficiency Level | / |
| Cybenectics Noise Level | / |
| From Factor | ATX 12V |
| Dimensions | 140mm×150mm×85mm |
| Fan Bearing | 120mm Fluid Dynamic Bearing |
| Cable Information | All Cable in Flat(Visible from housing) |
| AC Input | Full Range |
| Protection | OVP,UVP,SCP,OPP,NLO,SIP |
| Certification | Energy Star,RoHS,ErP,CE,FCC,REACH,UKCA |
Cables
| Cable Type | Connectors Per Cable | Length | Number of Cable Included | ||
 | MB(20+4 pin) | 1 | 450mm | 1 | |
 | CPU(4+4 pin) | 1 | 500mm | 1 | |
 | PCIE(6+2 pin) | 2 | 500mm+150mm | 1 | |
 | SATA | 3 | 400mm+150mm+150mm | 2 | |
 | Molex | 3 | 400mm+150mm+150mm | 1 | |
