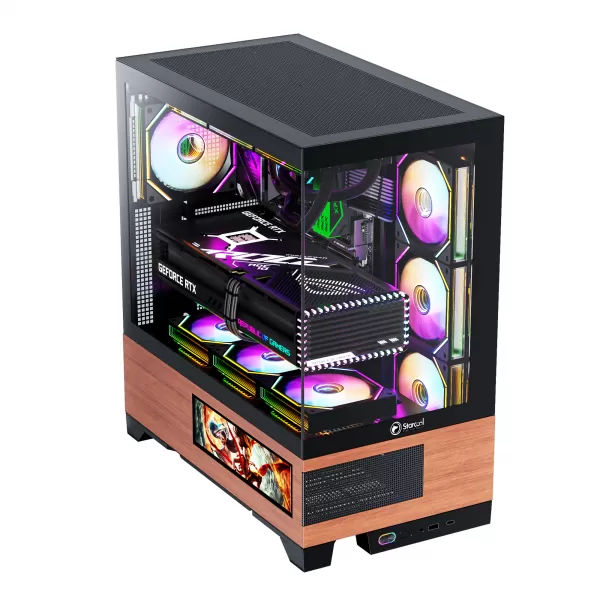

Item No.	STC-WJ-AGM
Front Panel	LCD Screen/wood base .
IO surface	1 x USB 3.0 +1*TYPE-C + HD  Audio
Top panel Dust filter	YES
Side Panel	Left &Front with Tempered Glass/right with metal
Motherboard Compatible	ATX/MATX/ITX
PSU Form	Bottom/ ATX PSU  200mm
Structure size(mm)-metal parts	Temper Glass
Product size(mm)	434*245*473MM
Material-Steel	SPCC Black
Structure+outside metal	SPCC Black+Tempered Glass
PCI Expansion Slots	7+3
Driver bay 5.25inch	0
Driver bay  3.5inch	3
Driver bay 2.5inch	0
CPU cooler	Mainboard:3*12cm (optional)
	Top:3*12cm/2*14cm(optional)
	Bottom :3*12cm (optional)
Cooling sizes	185mm
Water cooling	Top :240/280/360mm water cooling (optional)
Graphic card Limit	420mm
On chassis bottom	No
RGB strip (SYNC MB)-RGB	NO
Logo Marks	Silkscreen  LOGO
Carton size(mm)	540*310*505mm
G.W & N.W	8.28/7.04kg
1*40HQ	760pcs
LCD General Information
Outline dimension	64.3x231.3mm
Display area	54.72*218.88mm
Number of pixel	480 RGB(H)x1920
Pixel pitch	0.114(H)x0.114
Pixel arrangement	RGB Vertical stripe
Display mode	Normally black
NTSC	0.5
Surface treatment	HC
Weight	110g
Back-light	White LED
