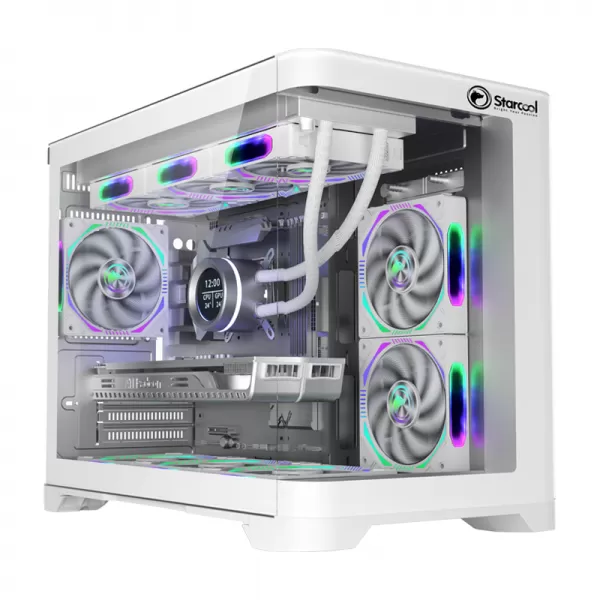

M-ATX Case
STC-TM412B
Front and side tempered glass panels for components and RGB display
Modular and toolless design panels ensure a friendly installation process
Support 360mm radiator
Support M-ATX/ITX Motherboard
SPECIFICATIONS
| Case Type | Tower Chassis |
| Color | Black/White |
| Dimension | 453mm(L)×280mm(W)×377mm(H) |
| Material | 0.5mm SPCC |
| Motherboard Support | M-ATX/ITX |
| Expansion Slot | 4 |
| Storage | 2×3.5 HDD+3×2.5 SSD |
| GPU Length Clearance | 400mm(Max) |
| CPU Cooler Height Clearance | 157mm(Max) |
| PSU Support | Standard ATX |
| Fan Support | Top:2×120mm Side:2×120mm Rear:1×120mm Bottom:3×120mm |
| Radiator Support | Top:360mm |
| I /O Ports | USB 2.0×2 HD Audio USB3.0×1 |
| Dust Filter | TOP Bottom |
